Full Color Indoor Video Wall Screen P4 High Definition High Pixel 2x3m LED Video

Name: Full Color Indoor Video Wall Screen P4 High Definition High Pixel 2x3m LED Video
Brand: SCXK
Price: 1 USD

China Full Color Indoor Video Wall Screen P4 High Definition High Pixel 2x3m LED Video wholesale

Brand Name : SCXK

Model Number : P4

Certification : CE/ROHS/FCC/ISO/UL

Place of Origin : ShenZhen in China

MOQ : No limit

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5000sqm per month

Delivery Time : 7-10 working days after receive your payment

Packaging Details : flight case, wooden case, carton, it is up to you.

Pixel pitch : 4mm

Display Function : Video/Text/Image

Frame Frequency : >=60HZ

Average NO Failure : >=1000hours

Refresh Rate : >=1920HZ

Maximum power consumption : 600W/m2

Module size : 256mmx128mm

Pixxel density : 62500

Driving mode : 1/8scan

LED span lifetime : 10000 hours

Contact Now

Full Color Indoor Video Wall Screen P4 High Definition 2x3m LED Video Wall Solutions

P4 Indoor Full Color LED Display

Indoor SMD P4

Lamp size

2121

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

62500/m²

Module resolution

32x32

Module size/mm

128x128

View distance

≥4m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>1800cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

120(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/16

Frame rate

60Hz

Refresh frequency

>1200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1100W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

P4 Indoor Full Color LED Display Product Details

1.SMD 3 in 1 LED with wide viewing angle and great color uniformity;

2.Using high-quality LED chips, with high stability and reliability;

3.LED cabinet can be customized as your LED display size;

4.The cabinet can be simple cabinet or with the backdoor as your request;

5.Back service or magnet front service are available;

6.Adopt advanced production and processing technology to ensure the display quality and service life (100,000 hours);

7.Excellent service including free technical support,when in the warranty or out of the warranty;

8. Based on CE, FCC,ROHS Certification.

Full Color Indoor Video Wall Screen P4 High Definition High Pixel 2x3m LED Video

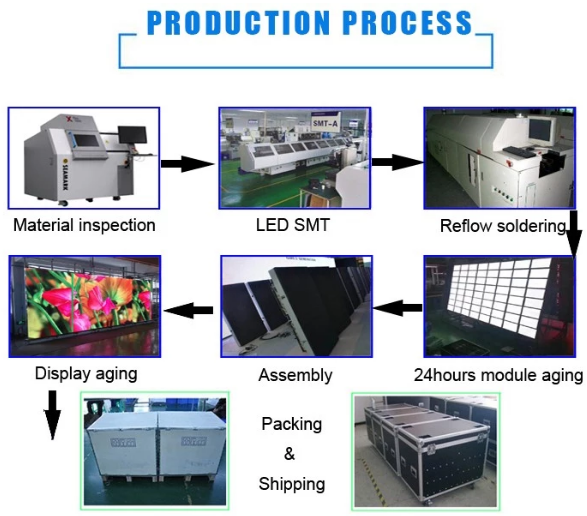

Factory Show

Project

Q1:What's the min order quantity?

A: LED screen 1 sqm / LED module 100pcs

Q2: What is the payment method?

A:We support a variety of payment methods. Normally by T/T,30% down payment,70% balance paid before shipping.

Q3: Is it ok to print my logo on led display product?

A: Yes, of course. If you need, pls inform us before our production.

Q4: How long is the delivery time?

A: It's about 15-25days after confirmation of the order.

Q5: How do you ship the goods and how long does take to arrive?

A: We usually ship by sea or air. By sea is about 30-40days; by air is about 3-7days.

Q6: What's the control system do you use?

A: Our standard control system is Linsn or Novastar. Also support other controlling system, like Huidu,Sheenled,Colorlight etc.

Q7: Do you have any certification for LED display?

A: Yes, we have CE,ROHS,FCC certification.

Q8: How about the guarantee of led display?

A: We guarantee all our displays, modules, spare parts for two years.

During this time, we will replace or remand our goods for free if there is something wrong with them.
